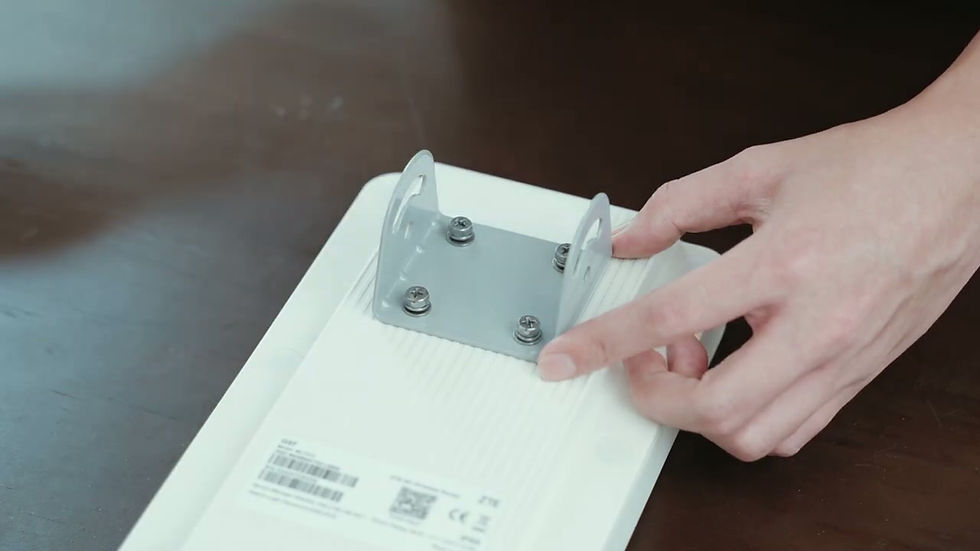

Installation Guide
https://youtu.be/wgBGCdjIRRo?si=4XpHj4nK98tjq2wd
Review
https://youtu.be/DBg-mQWrd_s?si=TRNYY2Y6NzxdJa8n
HIGHLIGHT
High-Speed 5G Connectivity – Next-generation ZTE G5 MAX outdoor CPE supports 5G NSA/SA networks and multi-band 5G/4G/3G compatibility with theoretical download speeds up to 4.29 Gbps and upload speeds up to 320 Mbps (operator dependent).

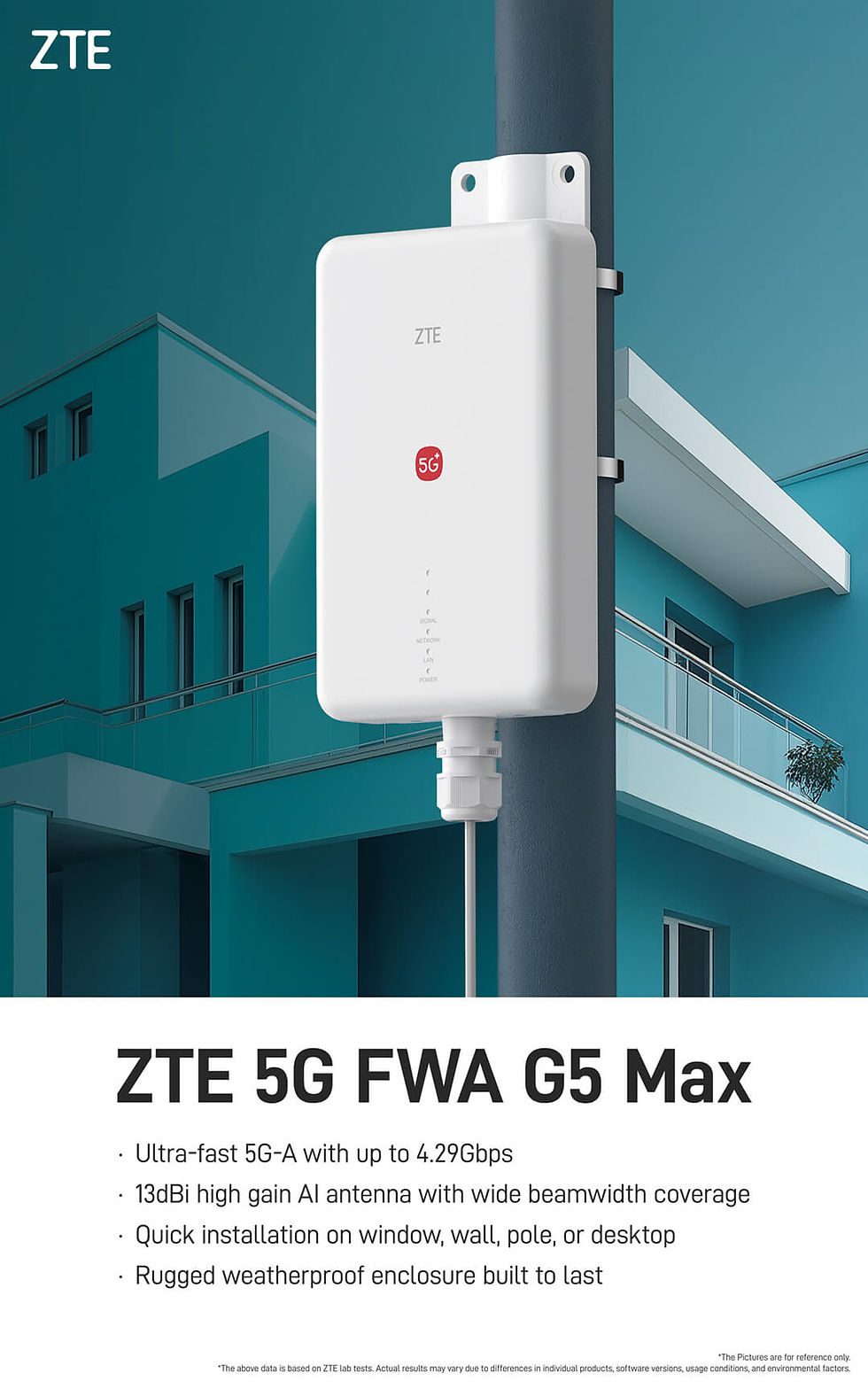

Robust Outdoor Design with Power over Ethernet – Built for exterior installation with IP65 weatherproof rating and PoE (Power over Ethernet) support for simplified single-cable power + data deployment.
FREE Advanced Dual-Band Wi-Fi 6 Router Included – T3000 indoor Wi-Fi 6 gateway delivers AX3000 performance with 4×7 dBi high-gain antennas, OFDMA, MU-MIMO and Easy Mesh support for seamless whole-home wireless coverage.
Carrier-Ready & Easy Setup – Compatible with all major carriers on specified frequency bands; easy SIM setup via web UI and 192.168.0.1 interface. Nano-SIM slot plus WPS button for quick secure connection.
Comprehensive Networking Features – Includes firewall, VPN (PPPoE/L2TP), USB-C port for diagnostics, Bluetooth for setup, rich signal strength info (RSRP/RSRQ/SINR), and multi-LED status indicators.
MODEL: ZTE G5 MAX GLOBAL VERSION (ENGLISH)
PRODUCT DETAIL: 5G ODU (OUTDOOR UNIT)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5G:
B1A(4);A(1)-B3A(4)-B28A(2)_N78A(4);A(1)-N78A(4)
20M+20M+20M+100M+100M
N41A(4x100)+N78A(4x100)+N78A(4x100);A(2x100)
4G Band CAT 16
FDD:B1A(4);A(1)+B3A(4);A(1)+B7A(4)+B20A(2)+B28A(2) all 20M TDD: B39A(4)+B41A(4)+B41A(4);A(1) all 20M
WIFI - NO WIFI - Connect to wifi router by LAN cable to access wifi
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5G SPEED:
5G DL Speed up to 4.3 Gbit/s
5G UL Speed up to 320Mbit/s
4G SPEED:
4G DL Speed up to 1.6 Gbit/s
4G UL Speed up to 200Mbit/s
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
HARDWARE:
1*2.5GE: 10Base-T /100Base-T /1000Base-T /2500Base-T (FOR LAN/POWER)
1 TypeC USB2.0 (FOR DEBUG )
One SIM card slot (Nano-SIM)
Reset button
LED for POWER , Network , Signal Strength ,RJ45 Active
Maximum power consumption 15 w
Ingress Protection : IP 65
Operating temperature -40 to 60° C
Humidity : 5% to 95% (Non-condensing)
AC Adapter:48V/320mA
Dimensions: 245 x 130 x 37mm
Weight : < 3KG
SOFTWARE:
Wireless mode , Bridge mode
IPv4/IPv6 dual stack (NDP IPv6)
DHCP server
VPN pass-through(L2TP/PPTP/IPSec)
VPN L2TP
VPN PPTP
NAT/NAPTSip ALG
Port Forwarding
Port Filtering
Port Mapping
Domain Filtering
Upnp
DMZ
Remote Access/Ping switch
MAC address filtering
APN management
Lock Frequency/Lock Cell
ZTE Smartlife APP
OpenWrt
