MODEL: HUAWEI B636-336

PRODUCT DETAIL: 4G+ WIFI ROUTER(SIM)

4G BAND: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43

3G BAND: B1/B5/B8

Wi-Fi: 802.11 b/g/n/a/ac/ax. 2.4GHz Wi-Fi 2x2 MIMO up to 574Mbps, 5GHz Wi-Fi

2x2 MIMO up to 2400Mbps. Maximum Users: 128

4G SPEED:​

• LTE DL Speed up to 400 Mbit/s

• LTE UL Speed up to 200 Mbit/s

FEATURE:

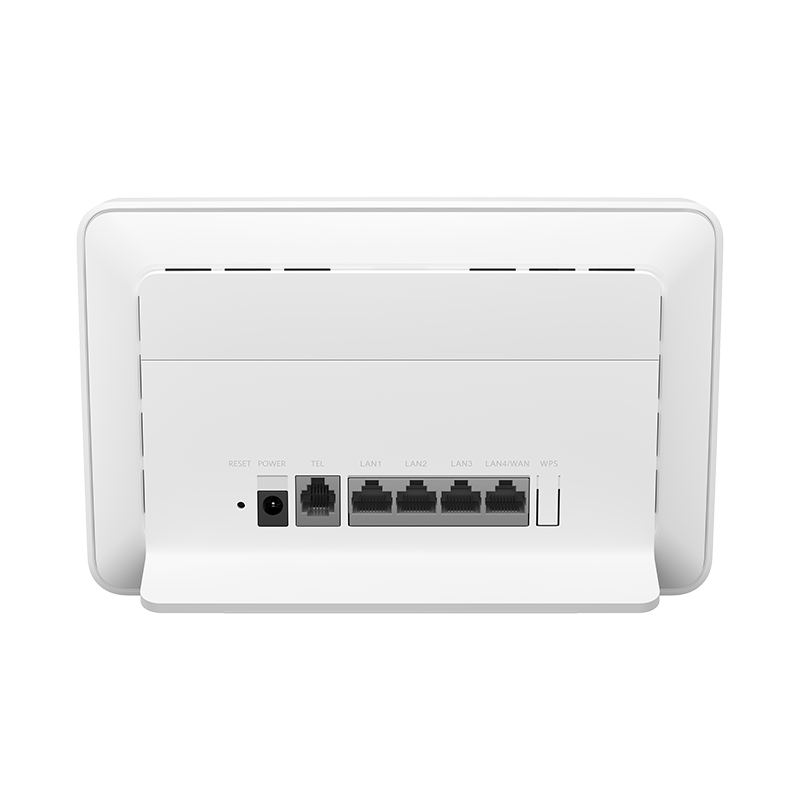

Hardware

• IEEE 802.11 b/g/n/a/ac/ax

• One power adapter port

• One phone port (RJ11) - VOIP ONLY

• One 1000 Mbps LAN/WAN network port (RJ45), three 1000Mbps LAN network ports (RJ45)

• Two external LTE antenna ports (SMA)

• One SIM card slot (Nano-SIM)

• Dimension : 198 mm (Width) x 125 mm (High) x 27.9 mm (Deep)

• Weight : About 305g (excluding the power adapter)

Software:

• AUTO APN and Manual APN , Multi-APN

• ROUTER : manual configuration of LAN IP addresses , Address Resolution Protocol (ARP)

• DHCP server : disable/enable DHCP, configuration address pool , lease

• NAT: Supports NAT and NAPT ,cone NAT, Symmetric NAT

• ARP and ICMP

• VPN client service

• VOICE - VOIP ONLY

• Firewall setup (Firewall enable/disable , URL filtering,LAN IP filtering,Port forwarding,Port triggering,DMZ service,UPnP service,ALG settings)

• SMS

• Up to 128 wireless users could be connected simultaneously
