HUAWEI 5G CPE WIN (5G 2.3Gbps 1LAN 0WIFI)

MODEL: HUAWEI H312-371 (ENGLISH)

PRODUCT DETAIL: 5G ODU (OUTDOOR UNIT)

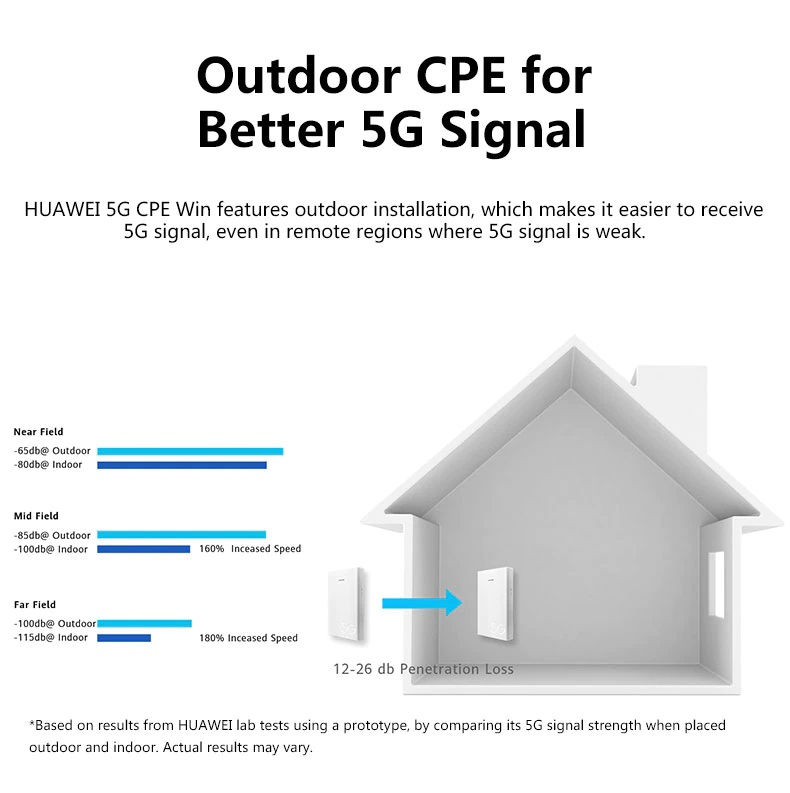

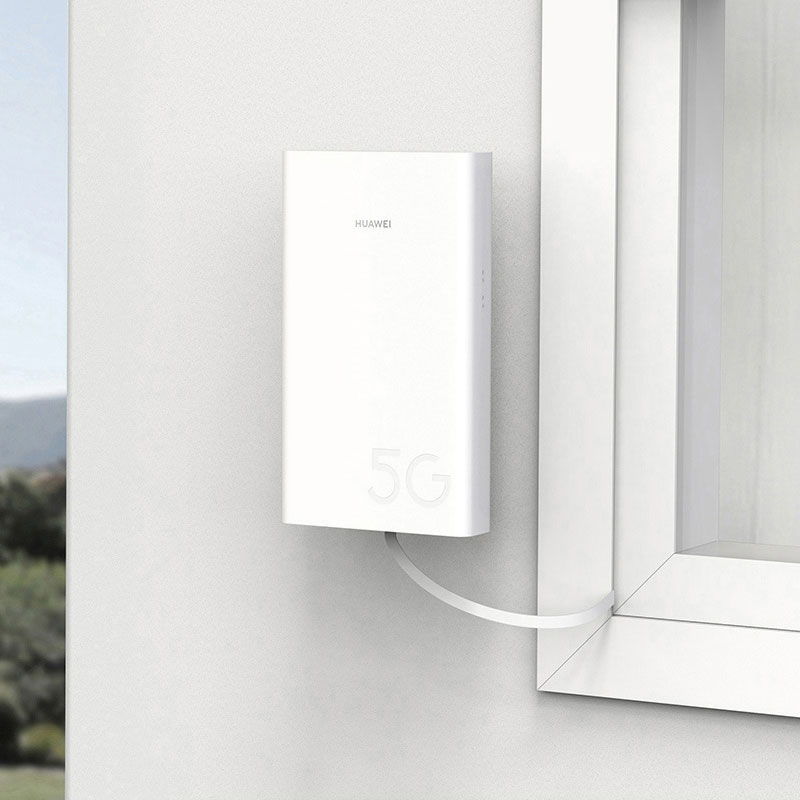

Huawei 5G CPE Win is the first outdoor 5G router from a world-famous network equipment manufacturer. Placing the Huawei H312-371 router outside the premises ensures high quality signal reception and transmission and significantly increases the speed of 4G and 5G mobile Internet, including when used at the edge of the cellular network.



* NOTE : The ODU is sim card modem only  , it dont have wifi hotspot feature, you may need to add in wifi router if wifi hotspot is needed

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

5G: n41/77/78/79(4800MHz~5000MHz)

4G Band CAT 19 B1/3/5/7/8/18/19/20/28/32/34/38/39/40/41/42/43

WIFI : IEEE 802.11b/g/n (FOR CONFIGURATION USE ONLY)

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

5G SPEED: (4X4 MIMO)

  • 5G DL Speed up to 2.33 Gbit/s
  • 5G UL Speed up to 650Mbit/s

4G SPEED: (4X4 MIMO)

  • 4G DL Speed up to 1.6 Gbit/s
  • 4G UL Speed up to 150Mbit/s

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

HARDWARE:

  • Balong 5000 Chipset
  • 1 POE Gigabit (10/100/1000/2500) RJ45 ports
  • One SIM card slot (Nano-SIM)
  • Built-in 5G/LTE primary antenna
  • Built-in 5G/LTE secondary antenna
  • Built-in Wi-Fi 2.4 GHz antennas
  • One 5G indicator , One 4G indicator
  • One Reset button
  • AC (input): 100V-240V 50Hz/60Hz , DC (output): 19V/1.26A
  • Working temperature: -40°C to +55°C  (No solar radiation)
  • Humidity 5% – 95% (non-condensing)
  • ODU design resistant to weather conditions IP65 waterproof housing

* ideal for home, office and poor coverage areas

Dimensions (mm): 112 mm (Length) x 29.6 mm (Width) x 187 mm (Height)

Weight : < 670 g (excluding the power adapter)



SOFTWARE:

  • APN management
  • APN auto adapter
  • Supports the default route
  • Supports manual configuration of LAN IP addresses
  • Supports Address Resolution Protocol (ARP)
  • The DHCP server can be enabled or disabled The address pool of the DHCP server can beconfigured The lease can be configured
  • Supports NAT and NAPT (compliant with
  • RFC2663, RFC3022, and RFC3027)
  • Supports cone NAT
  • ARP , ICMP , VPN pass-through
  • Support L2TP VPN client  , Support PPTP VPN client
  • SMS Writing/sending/receiving
  • Firewall enable/disable
  • MAC Address Filter
  • IP Filter
  • Virtual server
  • Special Applications
  • DMZ settings
  • SIP ALG settings
  • UPnP settings
  • NAT settings
  • Domain Filter
  • LAN 10/100/1000 Mbps auto-negotiation IEEE 802.3/802.3u-compatible
  • HUAWEI AI Life APP



OPTION TO BUY WIFI ROUTER

HUAWEI AX3

https://consumer.huawei.com/en/routers/ax3-quad-core/



HUAWEI 5G CPE WIN (5G 2.3Gbps 1LAN 0WIFI)

SKU: H312-371
S$995.21Price

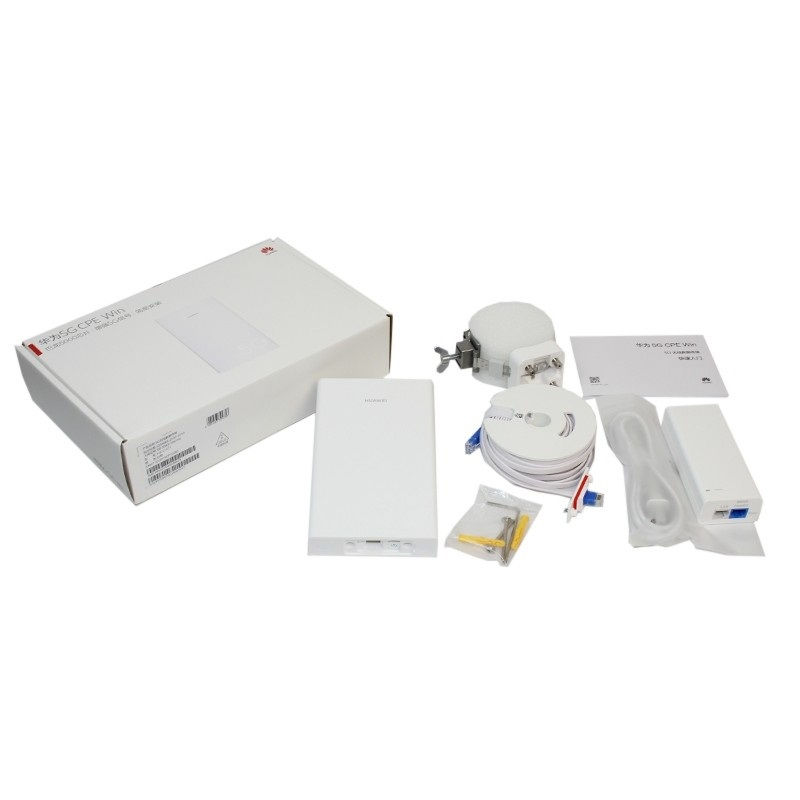

    • Wireless Gateway
    • PSU
    • PSU power cable
    • Ethernet cable
    • Base
    • Adjustable pole strap
    • Internal hexagon wrench
    • Screw
    • Expansion anchor
    • Quick Start
    • 1 Month Warranty
