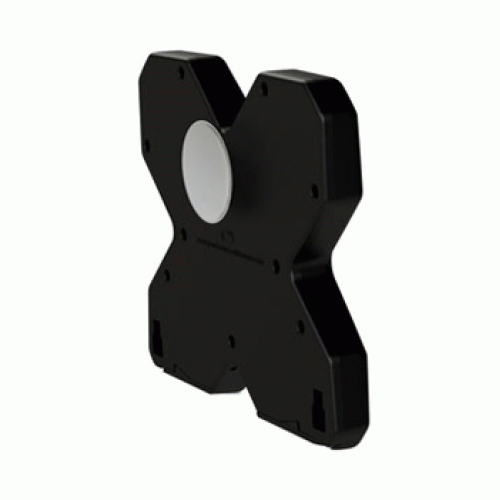

MODEL: DMM7-38-2SP
PRODUCT DETAIL: 4G ANTENNA COME WITH SMA Connector

Suitable for Huawei B310 B315 B525 E5186 and other router with SMA connector

The DMM antenna provides an innovative and future proof solution for 2G / 3G / 4G and 3.5GHz 5G networks. Incorporating two separately fed ultra wideband elements in a single housing the DMM is equipped to provide portable MiMo and diversity support for the networks of today and tomorrow.
The DMM is highly portable and features desk mount feet which fold out for use, and flat for transport. A handy suction window mount enables users to optimise their signal in multiple locations, with instant installation and easy removal.
The product is supplied with up to 2 metres (6’) of cable and a variety of connectors are available.
The DMM is an cost effective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers thereby improving satisfaction and retention.

Frequency Range (MHz) Antenna 1 / 2 : 698 - 960 / 1710 - 3800
Operating Bands : 2G / 3G / 4G / 5G
Radiation Pattern : Omni-directional
Typical VSWR : < 2.5 : 1
Peak Gain - excluding cable loss (all band) : 698-960MHz = 2.5dBi , 1710-2170MHz = 4dBi , 2.2-3.8GHz = 4dBi
Efficiency - excluing cable loss (all band) : 698-960MHz = >60% , 1710-2170MHz = >80%, 2.2-3.8GHz = >50%
Correlation Co-efficient (all band) : <0.1
Element Isolation: >18dB
Max Input Power : 20 Watts
Inpedance: 50 Ohm
Mechanical Data
Dimension (mm) Height 137mm , Width 151mm
Operation Temp (Degree C) : -40 to +80
Material: U.V Stabilised ABS
Color : RAL9005 (Jet Black)
Weight 250g
Mounting : Desk mount / screen clip / window mount
cable type : 2 x RG174 , diameter 2.8mm , length : 2m , termination 2 x SMA (male)
